| 1 |

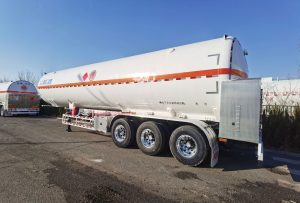

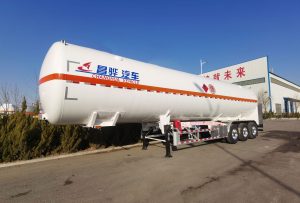

Model |
HCH9402GDYH |
| 2 |
Medium |
LNG (Liquefied Natural Gas) |
| 3 |
Overall dimension |
13000*2500*3920mm (according to design drawings) |
| 4 |
Curb weight |
15400kg (approx) |
| 5 |
Payload capacity |
24600kg (approx) |
| 6 |
The height of fifth wheel |
Designed according to the data of the truck head |
| 7 |
Filling weight per |
467.7 |
| 8 |
Corrosion allowance |
0 mm |
| 9 |
Design pressure |
0.63 |
| 10 |
Insulation type |
High vacuum multi-layer winding insulation |
| Tank body specification |
| 11 |
Tank capacity |
52.6 m³ |
| 12 |
Tank material |
S30408 |
| 13 |
Tank Design thickness |
End cover: 7mm |
| Tank body: 6mm |
| Baffle: 3mm |
| Main parts specification |
| 14 |
Beam |
Heavy-duty and extra durability designed |

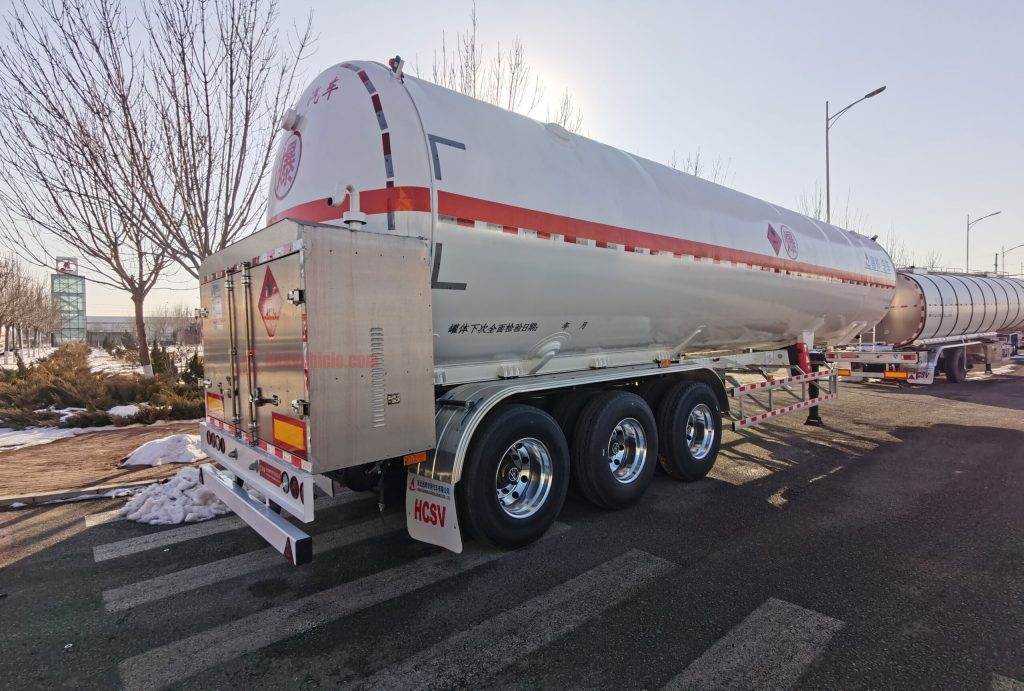

| 15 |
Axle |
13T HCSV Brand disc brake with air suspension and KEMEE Brand EBS & 3 units |
| 16 |
Tire |
12R22.5 & 12 units，Triangle Brand |
| 17 |
Rim |
9.00 & 12 units，high strength iron |
| 18 |
King pin |
50#(2″) or 90# (3.5″) standard bolt type |
| 19 |
Landing gear |
Capacity & 28T，FUWA Brand |
| 20 |
Suspension |
Air suspension |
| 21 |
Spare wheel carrier |
Factory standard |
| 22 |
Mud guard plate |
Factory standard |
| 23 |
Electric system |
Factory standard |
| 24 |
Relay valve |
Factory standard |
| 25 |
Tool box |
Factory standard |
| 26 |
Lights |
Factory standard |
| 27 |
Painting |
As customer’s requirements |
| 28 |
Others |
Configuration not mentioned is based on factory standard |
| Other equipment |
| 1. |
Single tool box, largest as possible as we can. |
| 2. |

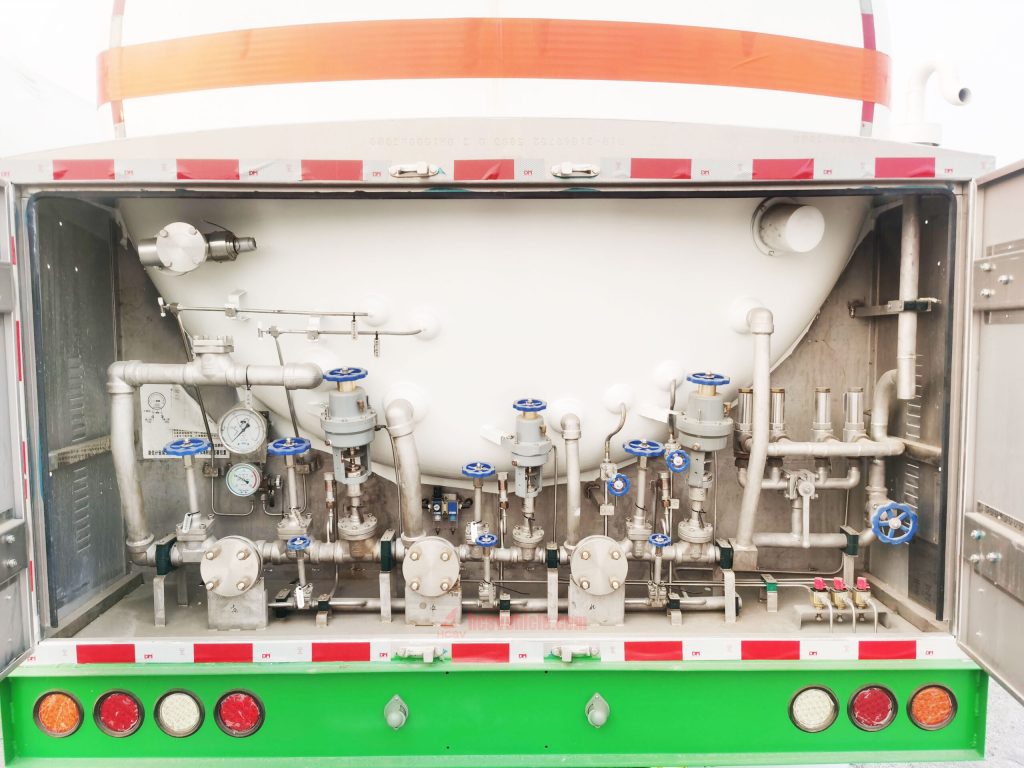

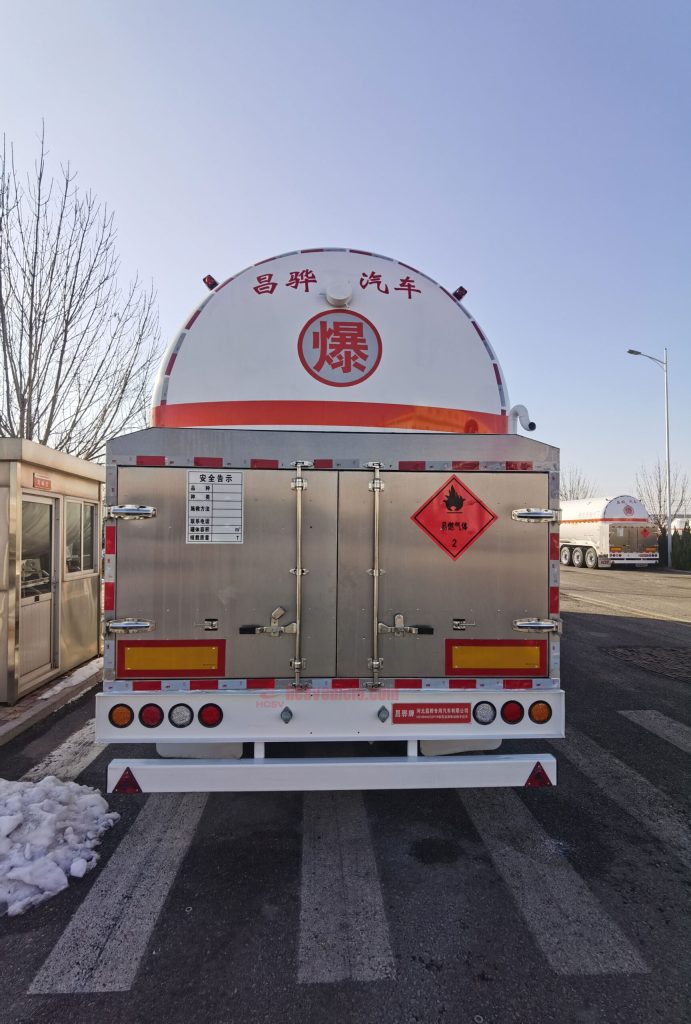

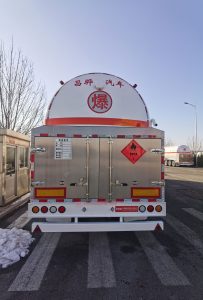

Two valve boxes, largest as possible as we can. |
| 3. |
Both right and left sides loading and unloading on rear. |
| 4. |
2 sets of 8KG fire extinguisher and boxes. |
| 5. |
1set of anti-static grounding tape. |
| 6. |
All of other necessary tools. |
