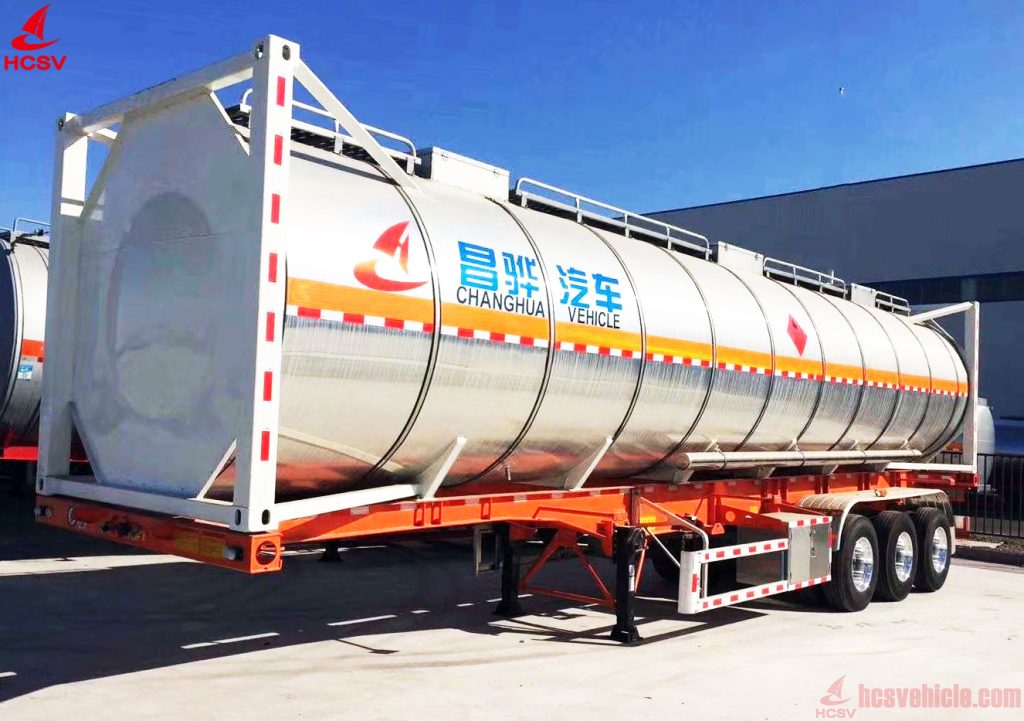

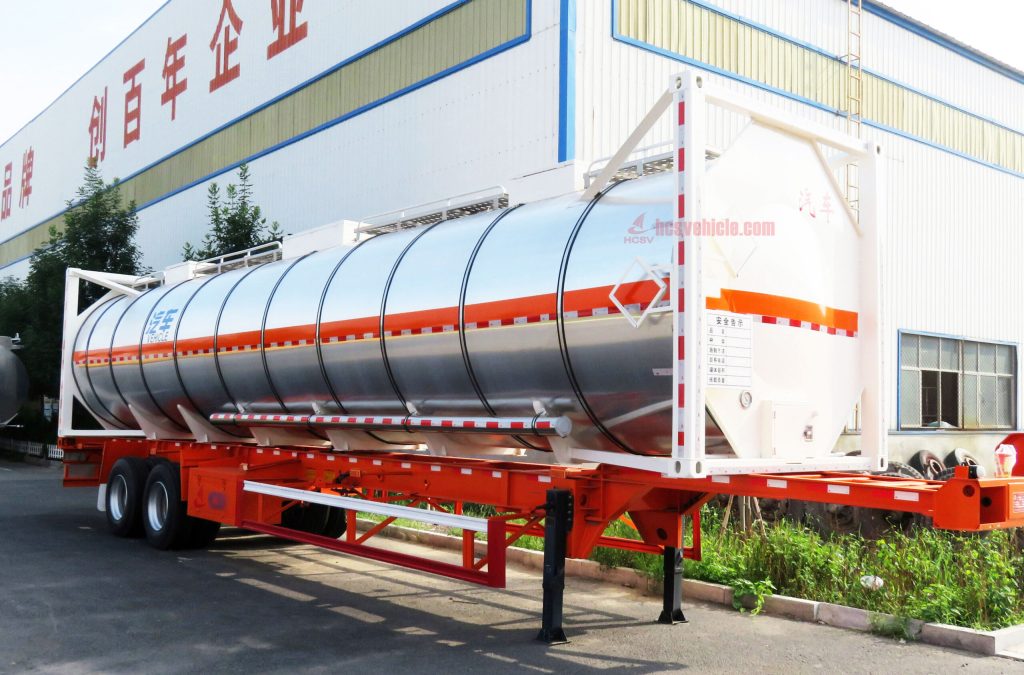

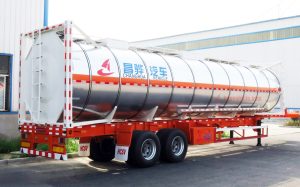

citerne-isolante-conteneur-cadre-pour-huiles-alimentaires
| Tank trailer specification | ||
|---|---|---|
| 1 | Medium | Bitumen/Crude oil and other high temperature oil |
| 2 | Overall dimension | 11800*2500*3500mm(approx) |
| 3 | Curb weight | 9300kg(approx) |
| 4 | The height of fifth wheel | 1280 mm |
| 5 | Axle | 13T HCSV Brand with ABS and automatic slack adjusters & 3 units |
| 6 | Tire | 12R22.5 & 12 units,Triangle Brand |
| 7 | Rim | 9.00 & 12 units, high strength iron |
| 8 | King pin | 50#(2″) or 90# (3.5″) standard bolted type |
| 9 | Landing gear | Capacity & 28T, JOST Brand |
| 10 | Suspension | Leaf spring,16mm*90mm*10pcs |
| Tank body specification | ||
| 11 | Tank shape | Square round and goose neck design |
| 12 | Tank capacity | 45,000 liters (valid volume) + 5%(ullage) |
| 13 | Tank material | Q235B or Q345B |
| 14 | Tank designed thickness |
End cover: 5.5 mm |
| Tank body: 5 mm | ||
| Baffle: 5 mm | ||
| 15 | Insulation material | Rock wool or foam insulation |
| 16 | Insulation material thickness | 50 mm or as customer’s requirements |
| 17 | Insulation cover plate | Color coated plate or Aluminum plate or stainless steel plate |
| 18 | Insulation cover plate thickness | 0.5 mm |
| 19 | Heating system | Oven or burner or heating channel |
| Main parts specification | ||
| 20 | Beam | Heavy duty and extra durability designed T-type beam,opting for high tensile steel Q345,welded by automatic submerged-Arc processes |
| 21 | Compartment | Single |
| 22 | Manhole cover | Carbon steel,quick-open type & 2 units |
| 23 | Bottom valve | 4″ stainless steel & 1 unit |
| 24 | Discharging valve | 4″ Iron ball valve & 2 units |
| 25 | Discharging hose box | 6 meters & 2 units |
| 26 | Discharging hose | High temperature type,5.7 meters & 2 units |
| 27 | Handrail | 2 units on the top |
| 28 | Walkway platform | On the top with anti-slip punched design |
| 29 | Ladder | 1 unit, on the rear or front |
| 30 | Breath valve | Stainless steel & 1 unit |
| 31 | Spare tire Carrier | 1 unit |
| 32 | Mud guard plate | Integrated design plate,carbon steel |
| 33 | Reverse buzzer | 1 unit |
| 34 | Electric system | 24V, 7-pin socket |
| 35 | Lights | LED lights with protection |
| 36 | Painting | As customer’s requirements |
| 37 | Delivery | Spray wax before departure and tarpaulin for protection |
| Other equipment | ||
| 1. | Single tool box, carbon steel, largest as possible as we can | |
| 2. | Single valve box, carbon steel, largest as possible as we can | |
| 3. | Both right and left sides loading and unloading on rear. | |
| 4. | 2 sets of 8KG fire extinguisher and boxes | |
| 5. | 1set of anti-static grounding tape | |
| 6. | All of other necessary tools | |
