| 1 |
Description |

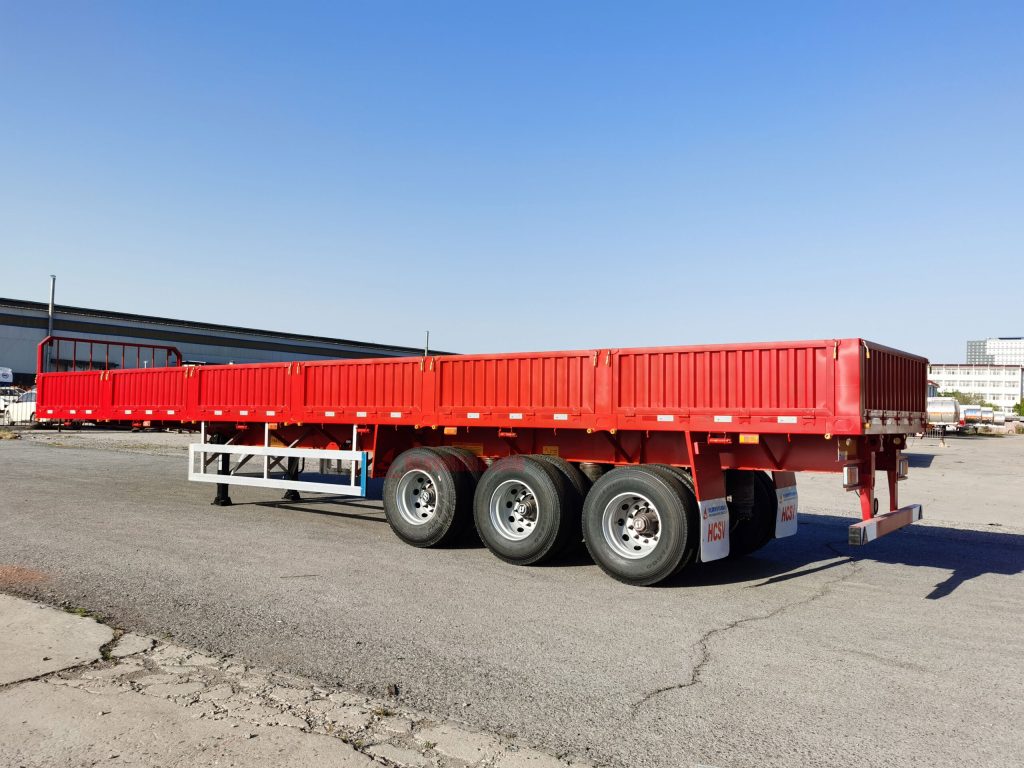

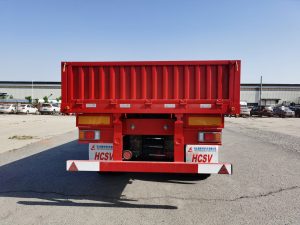

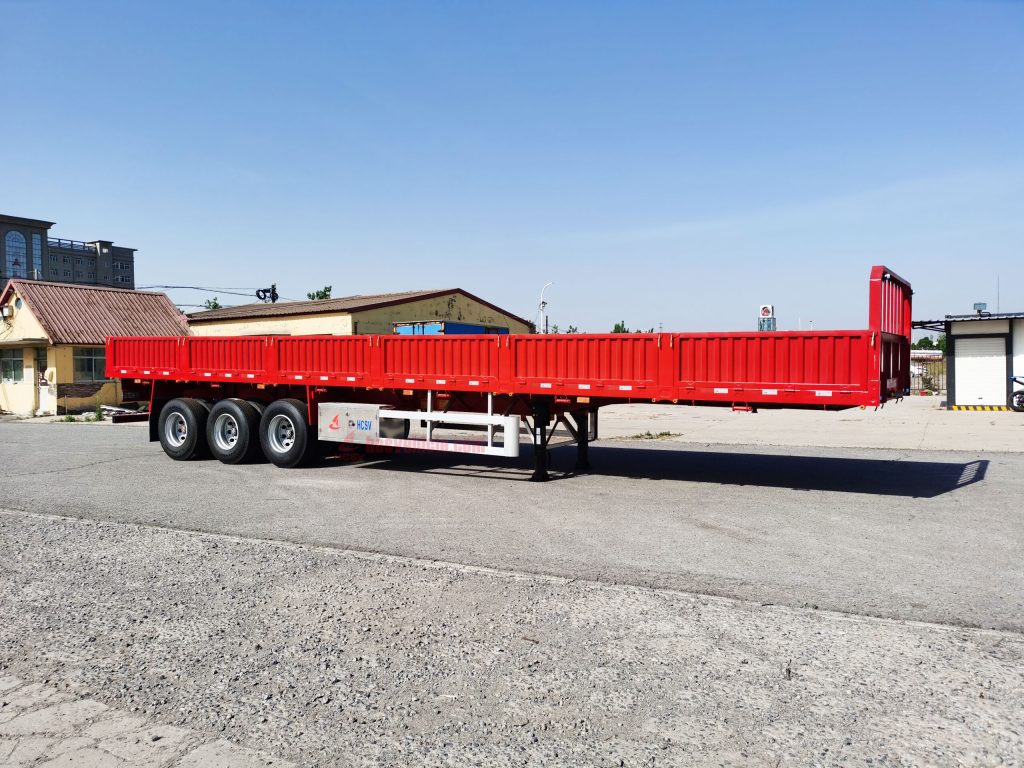

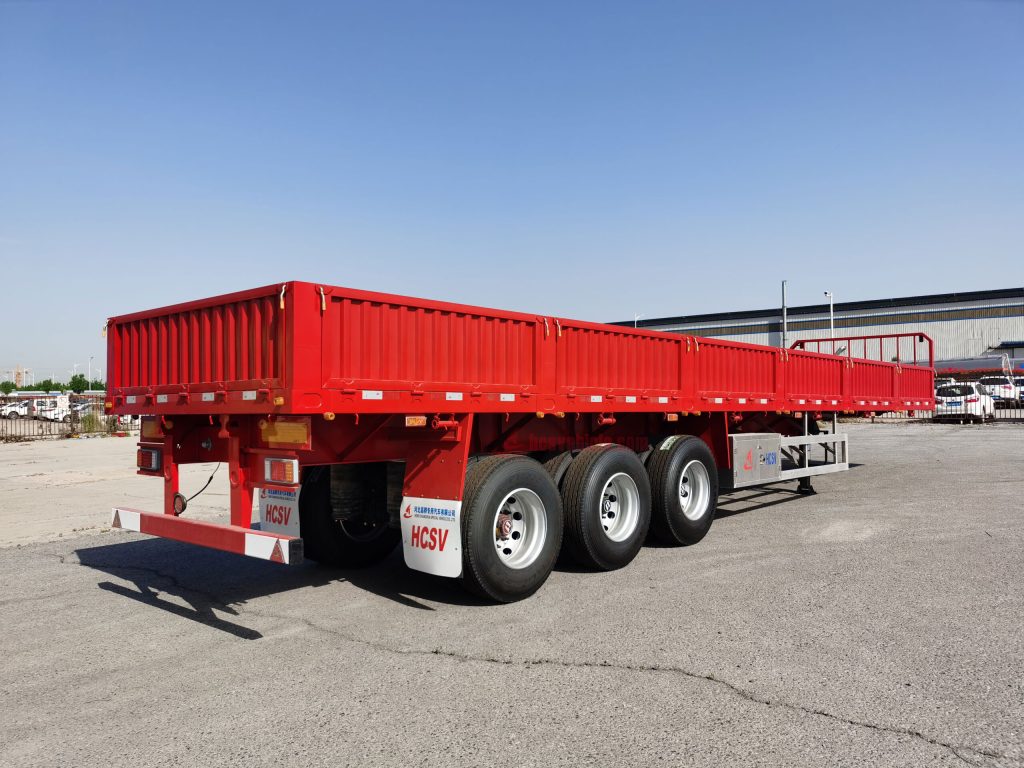

40 Feet 3-axle heavy-duty sidewall type cargo transport semi-trailer |
| 2 |
Function |
Transport loose cargo,bagged cement,bulk rice,etc. |
| 3 |
Overall dimension |
12800*2550*2150mm(approx) |
| 4 |
Curb weight |
According to design,must be heavy-duty designed |
| 5 |
Material |
Carbon steel,Q345B |
| 6 |
Sidewall board |
60cm height & detachable-type |
| 7 |
Payload |
50 Tons |
| 8 |
The height of the fifth wheel |
Designed as client’s truck head drawing |
| 9 |
Platform |
Thickness 3mm & checkered steel plate |
| 10 |
Chassis |
Top flange: Thickness:14mm |
| Middle flange: Thickness:8mm |
| Bottom flange: Thickness:16mm |
| Boundary flange: Thickness:14mm(Channel steel) |
| Main parts specification |
| 11 |
Suspension |
Leaf spring,16mm*90mm*10pcs |
| 12 |
Axle |
13T HCSV Brand with ABS and automatic slack adjuster & 3 units |
| 13 |
Tire |
12R22.5 & 12 units,Brand Triangle |
| 14 |
Rim |
9.00 & 12 units,high strength iron |
| 15 |
King pin |
50#(2″) or 90#(3.5″),standard bolt type |
| 16 |
Landing gear |
Capacity & 28T,Brand JOST |
| 17 |
Spare wheel carrier |
1 unit |
| 18 |
Twist lock |
12 units (can deliver 40 or 20 feet container) |
| 19 |
Lash hook |
Heavy-duty type,large quantities as possible as we can |
| 20 |
Loadlock winch |
Large quantities as possible as we can |
| 27 |
Mud guard plate |
Integrated design plate,heavy-duty design |
| 28 |
Reverse buzzer |
1 unit |
| 29 |
Electric system |
24V, 7-pin socket |
| 30 |
Lights |
LED lights with protection |
| 31 |
Painting |
Color as customer’s requirements |
| 32 |
Delivery |
Spray wax before departure and tarpaulin for protection or shipping with container |
| Other equipment |
| 1. |
Single tool box, largest as possible as we can. |
| 2. |
2 sets of 8KG fire extinguisher and boxes. |
| 3. |
1 set of anti-static grounding tape. |
| 4. |
All of other necessary tools. |
| 5. |
Bring enough spare parts for client,like joints,hangers,lights,hooks,winches and so on. |
