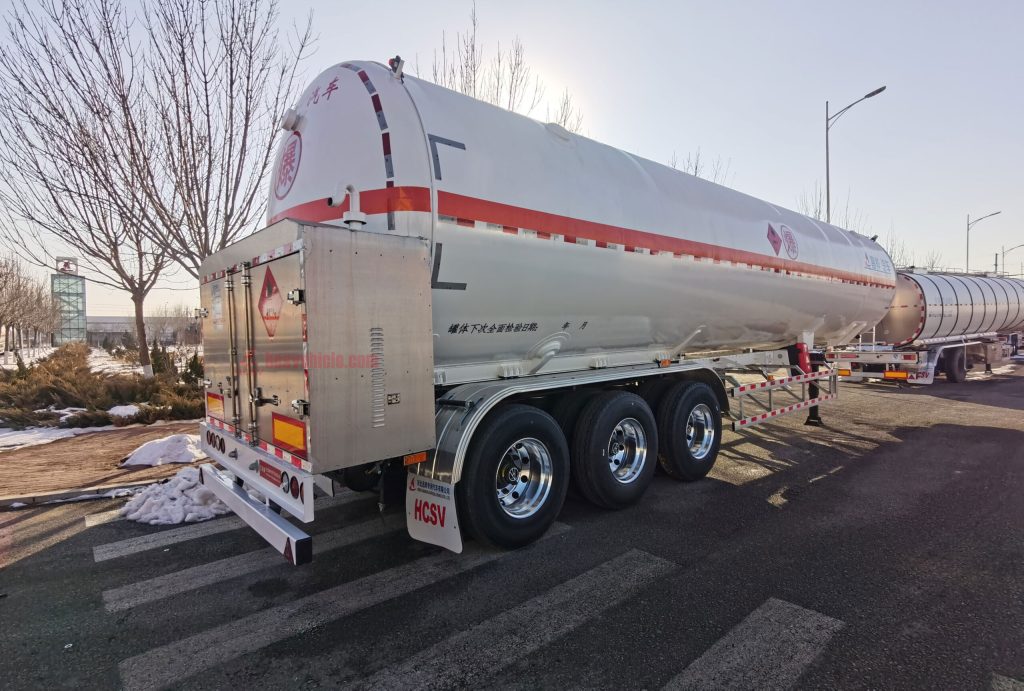

صهريجالغازالطبيعيالمسالسعة52.6متر_مكعب

صهريج_الغاز_الطبيعي_المسال_سعة_52.6_متر_مكعب：	صهريج_الغاز_الطبيعي_المسال_سعة_52.6_متر_مكعب
الأسعار：	44000$ ~ 48000$
دورة الإنتاج：	28-35

LNG specification
1	Model	HCH9402GDYH
2	Medium	LNG (Liquefied Natural Gas)
3	Overall dimension	1300025003920mm (according to design drawings)
4	Curb weight	15400kg (approx)
5	Payload capacity	24600kg (approx)
6	The height of fifth wheel	Designed according to the data of the truck head
7	Filling weight per	467.7
8	Corrosion allowance	0 mm
9	Design pressure	0.63
10	Insulation type	High vacuum multi-layer winding insulation
Tank body specification
11	Tank capacity	52.6 m³
12	Tank material	S30408
13	Tank Design thickness	End cover: 7mm
		Tank body: 6mm
		Baffle: 3mm
Main parts specification
14	Beam	Heavy-duty and extra durability designed
15	Axle	13T HCSV Brand disc brake with air suspension and KEMEE Brand EBS & 3 units
16	Tire	12R22.5 & 12 units，Triangle Brand
17	Rim	9.00 & 12 units，high strength iron
18	King pin	50#(2″) or 90# (3.5″) standard bolt type
19	Landing gear	Capacity & 28T，FUWA Brand
20	Suspension	Air suspension
21	Spare wheel carrier	Factory standard
22	Mud guard plate	Factory standard
23	Electric system	Factory standard
24	Relay valve	Factory standard
25	Tool box	Factory standard
26	Lights	Factory standard
27	Painting	As customer’s requirements
28	Others	Configuration not mentioned is based on factory standard
Other equipment
1.	Single tool box, largest as possible as we can.

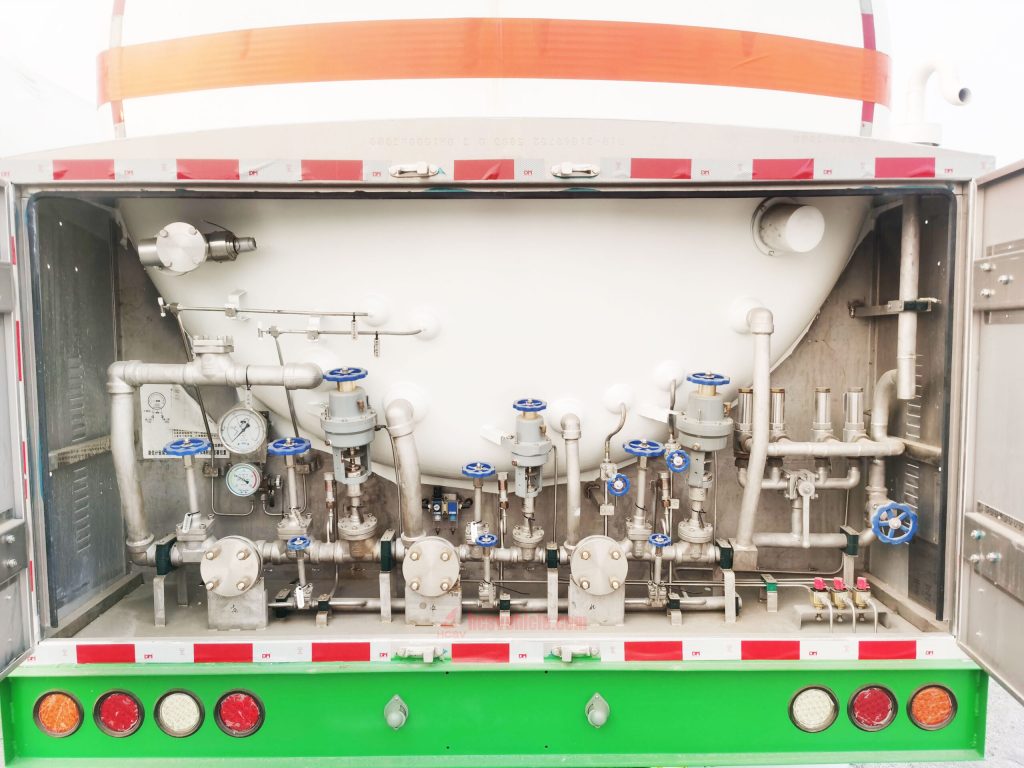

2.	Two valve boxes, largest as possible as we can.
3.	Both right and left sides loading and unloading on rear.
4.	2 sets of 8KG fire extinguisher and boxes.
5.	1set of anti-static grounding tape.
6.	All of other necessary tools.
